If you have static Internet Protocol (IP) enabled for your network follow these steps to add that static IP to your Desk/3500.
- Power on the Desk/3500. If needed, view the Installation Demo: YouTube link. The screen prompts Press Cancel for Application Menu. Press Cancel (red key) to display the application menu.
- Press the number corresponding to DOWNLOADER to select it. The Application Menu displays.
- Press 2 to select ADMIN. If prompted to Enter Admin Password, press 4, 2, 6, 6, 9, 7, and then Enter (green key). The Admin menu displays.
- Press 3 to select EDIT PARAMETERS.
- Press 9 to select NEXT. Continue to press 9 until EDIT PARAMETERS HOST LINK TYPE displays. Ensure the HOST LINK TYPE is IP. (To change it, press 8, and then select IP.)
- Press 9 to select NEXT. Ensure the IPADDRESS ASSIGNMENT is STATIC. (To change it, press 8, and then select STATIC.)
- Press 9 to select NEXT. Ensure the IP ADDRESS is set to the static IP network address for your Desk/3500. (To change it, press 8, add your static IP, and then press Enter .)
- Press 9 to select NEXT. Ensure the subnet mask for the Desk/3500 on your network displays correctly. (To change it, press 8, add your subnet mask, and then press Enter.)

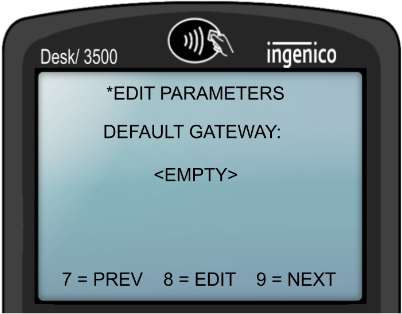

- Press 9 to select NEXT. Ensure the default gateway is correct. (To change it, press 8, add your default gateway information, and then press Enter.)

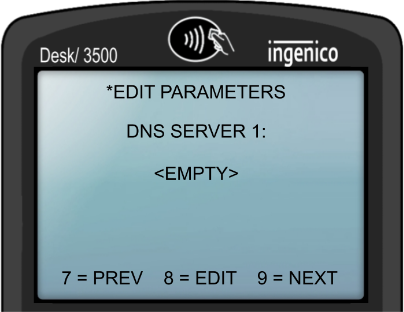

- Press 9 to select NEXT. Ensure the DNS SERVER1 is correct. (To change it, press 8, add your DNS SERVER1 information, and then press Enter.)
- Press 9 to select NEXT. Ensure the DNS SERVER2 is correct. (To change it, press 8, add your DNS SERVER2 information, and then press Enter.)
- Press 9 to select NEXT. Continue pressing 9 until the Desk/3500 restarts. Begin using the Desk/3500 to verify it connects to your network.
